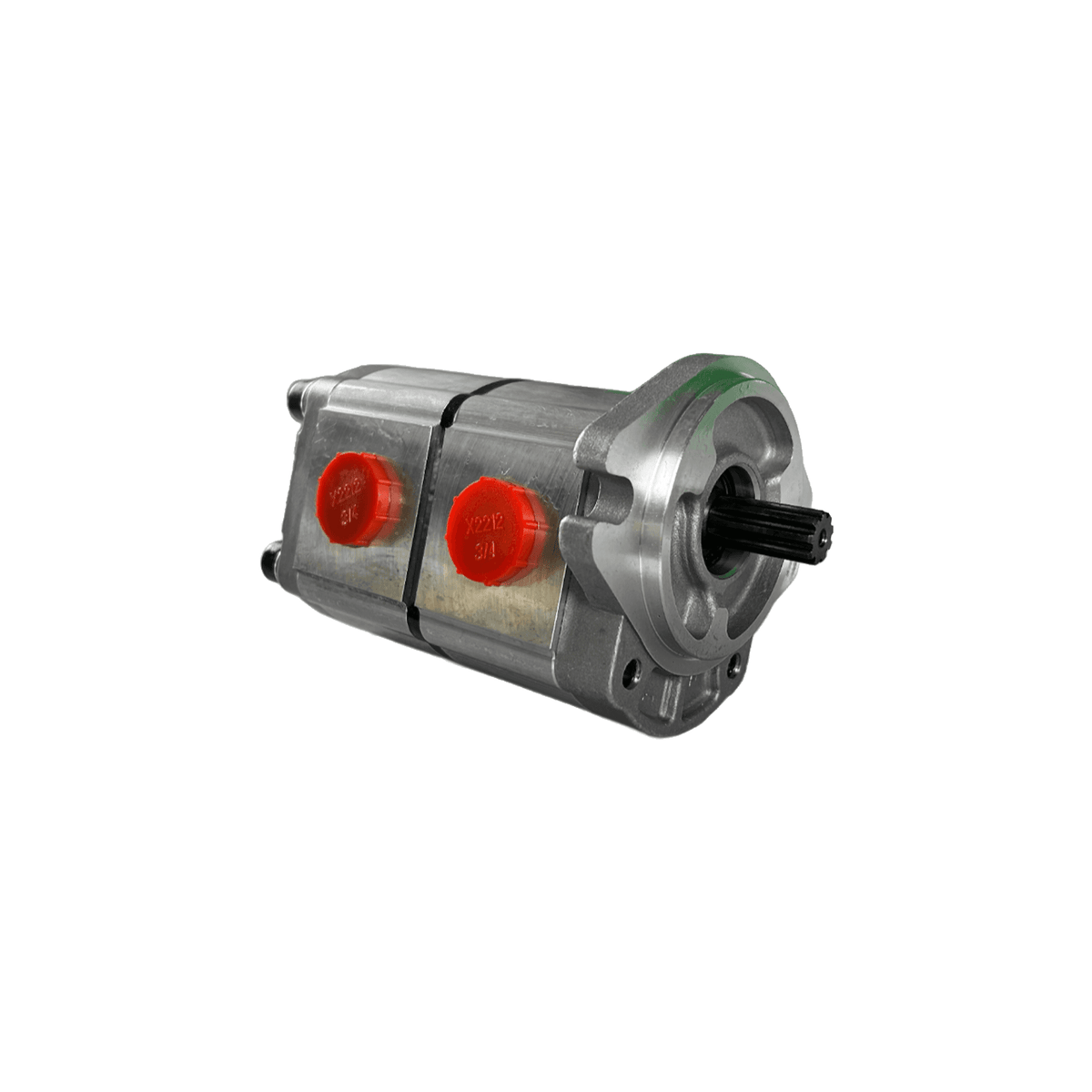

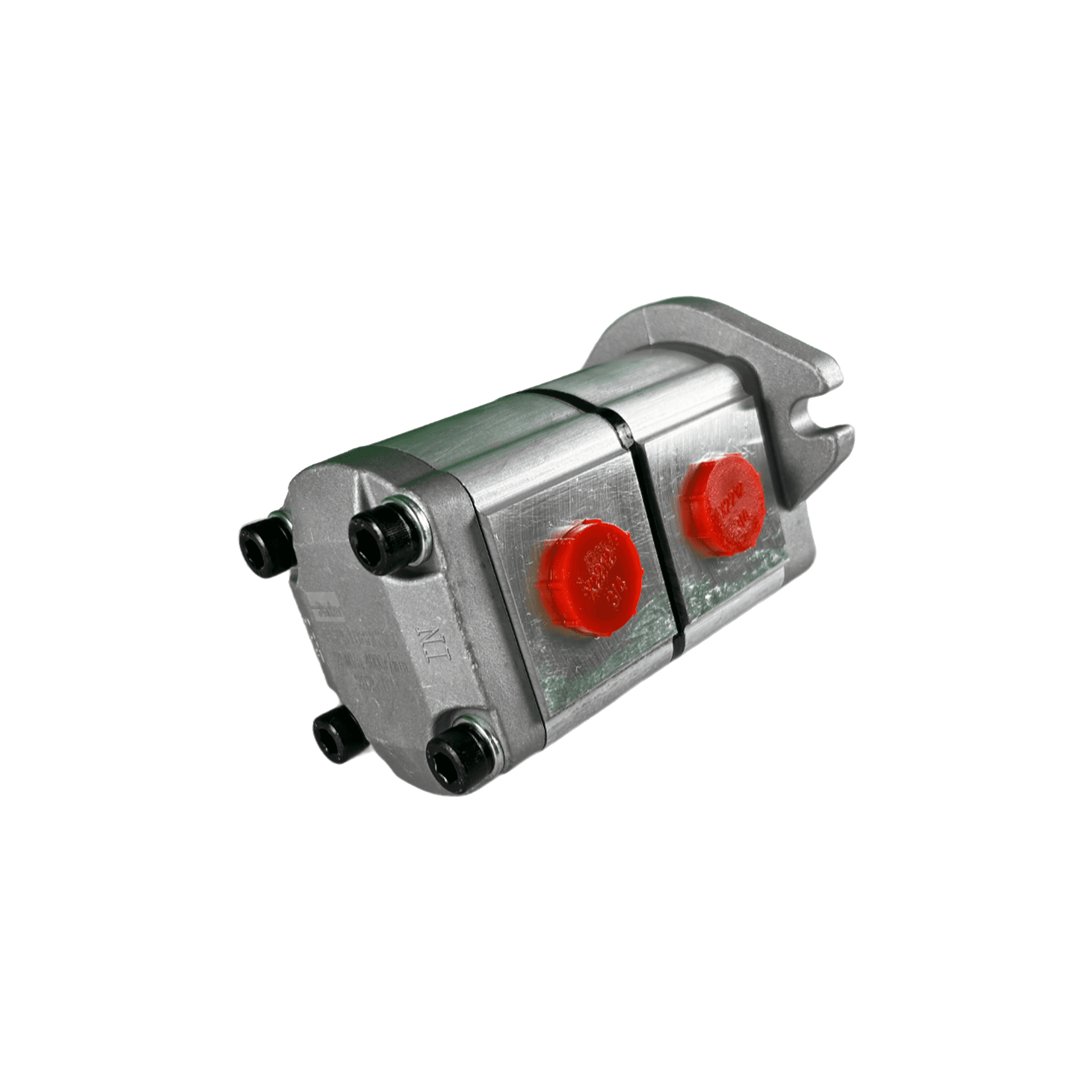

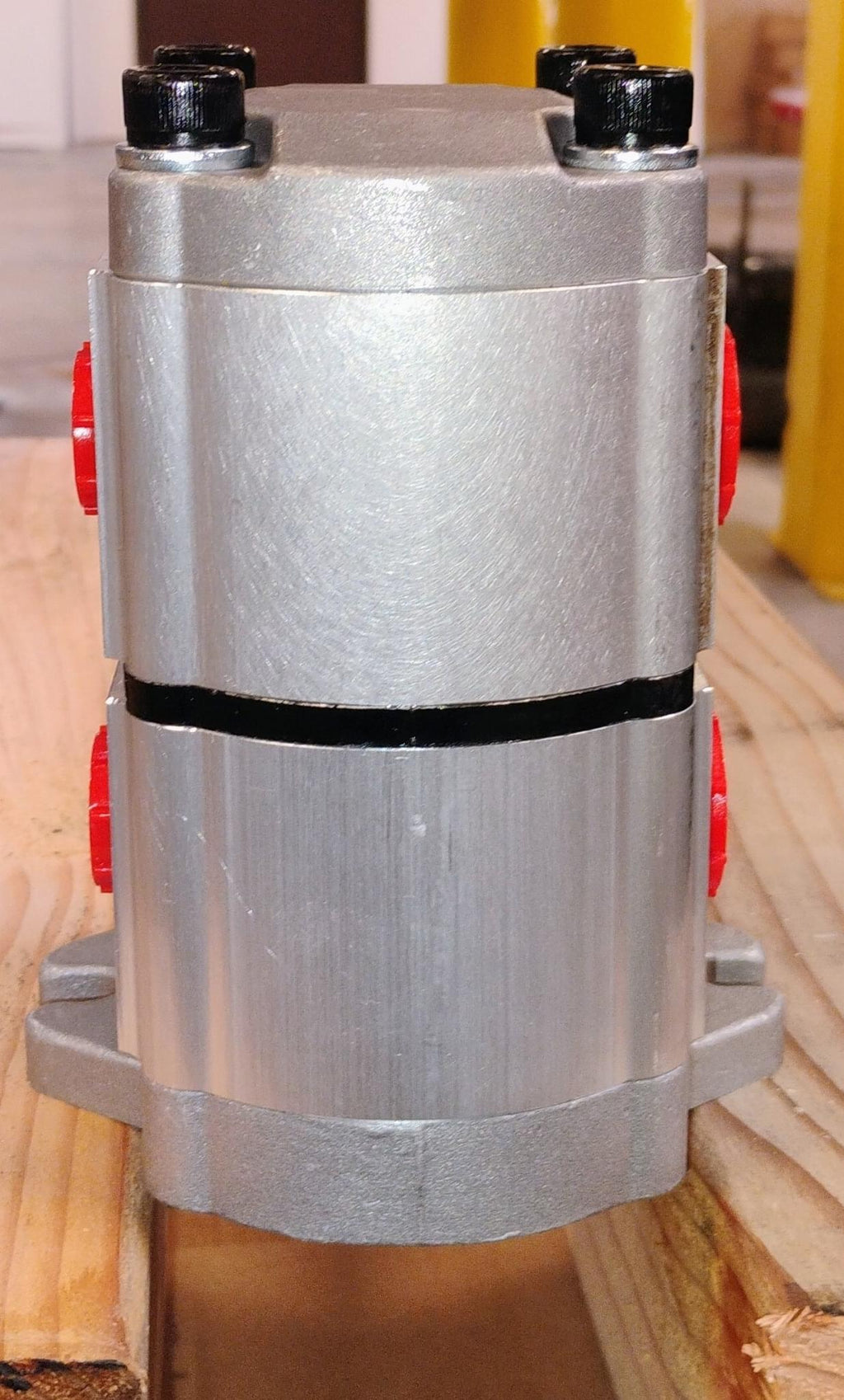

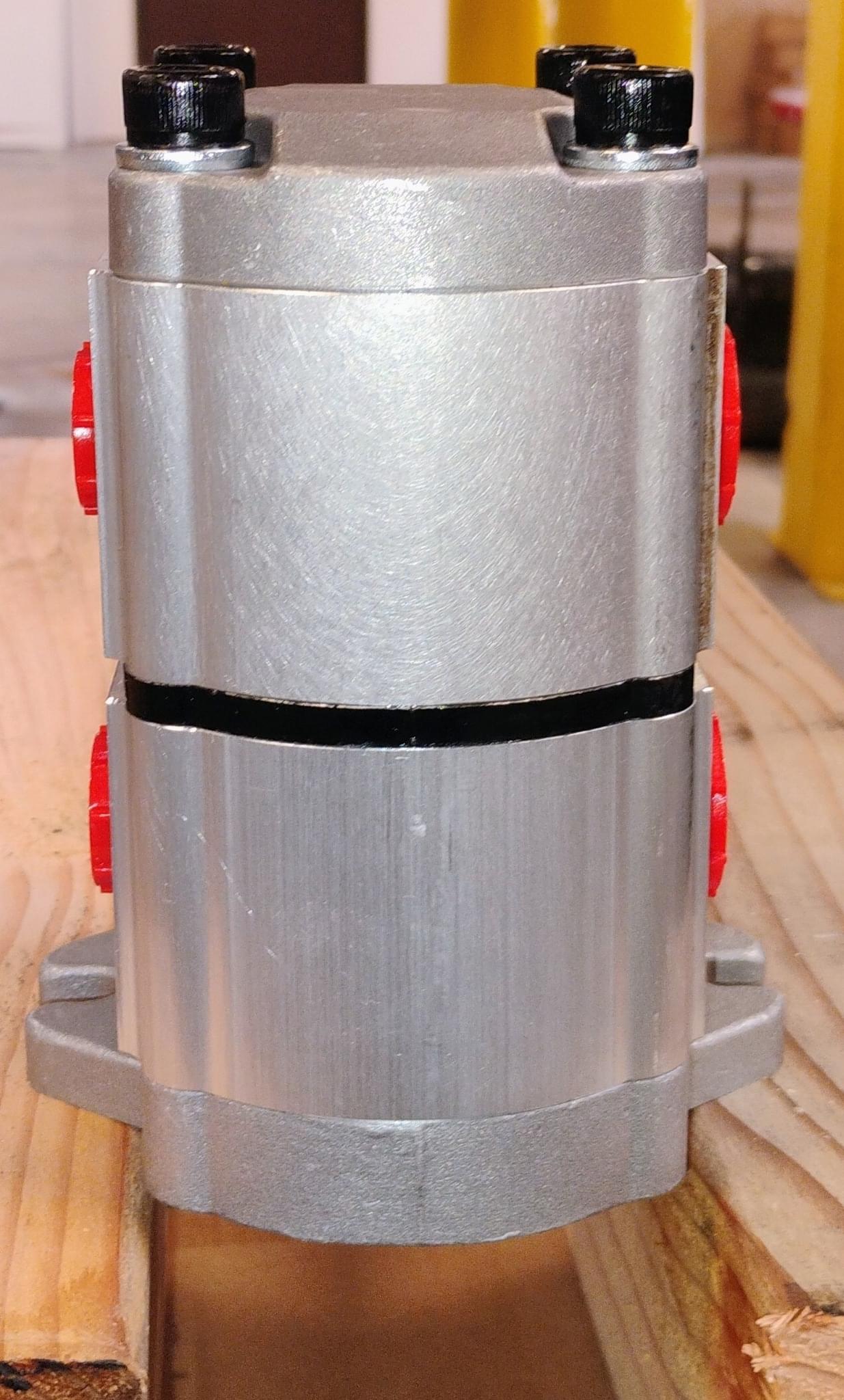

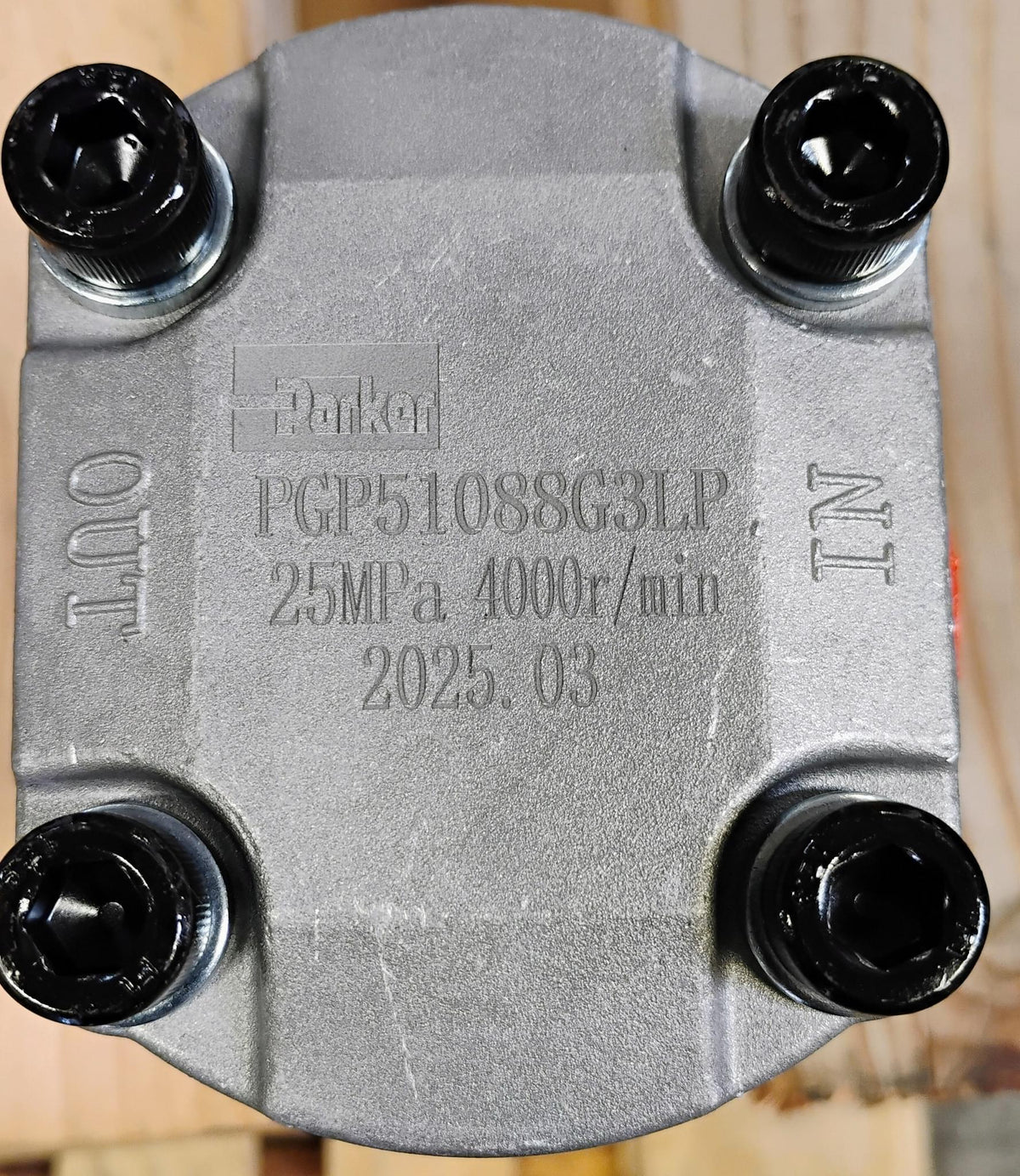

Two-Section Hydraulic Pump for Mini Skid Steers | PGP51088G3LP

The AGT Two-Section Hydraulic Pump is a dual-chamber, dual-suction, dual-feed mini skid steer pump engineered for precise flow control and reliable hydraulic performance. Built for compact loaders, this unit features independent circuits for main drive and auxiliary hydraulics, allowing simultaneous operation without power loss. It uses a 5/8" 9-spline A2 mount and is built for high-duty applications where power split and flow consistency are critical.

Technical Data

• Model Number: AGT-SLCLB (Two-Section)

• Pump Type: Dual-chamber hydraulic gear pump

• Mounting Spec: 5/8" 9-spline A2 mount

• Feed Type: Dual suction, dual feed

• Main Inlet Port Dedicated to drive system

• Auxiliary Inlet Port Dedicated to hydraulic attachments

• Flow Capacity: Approx. 6-12 GPM

• Operating Pressure: Up to 3,000 psi (21 MPa)

• Construction High-strength cast housing
