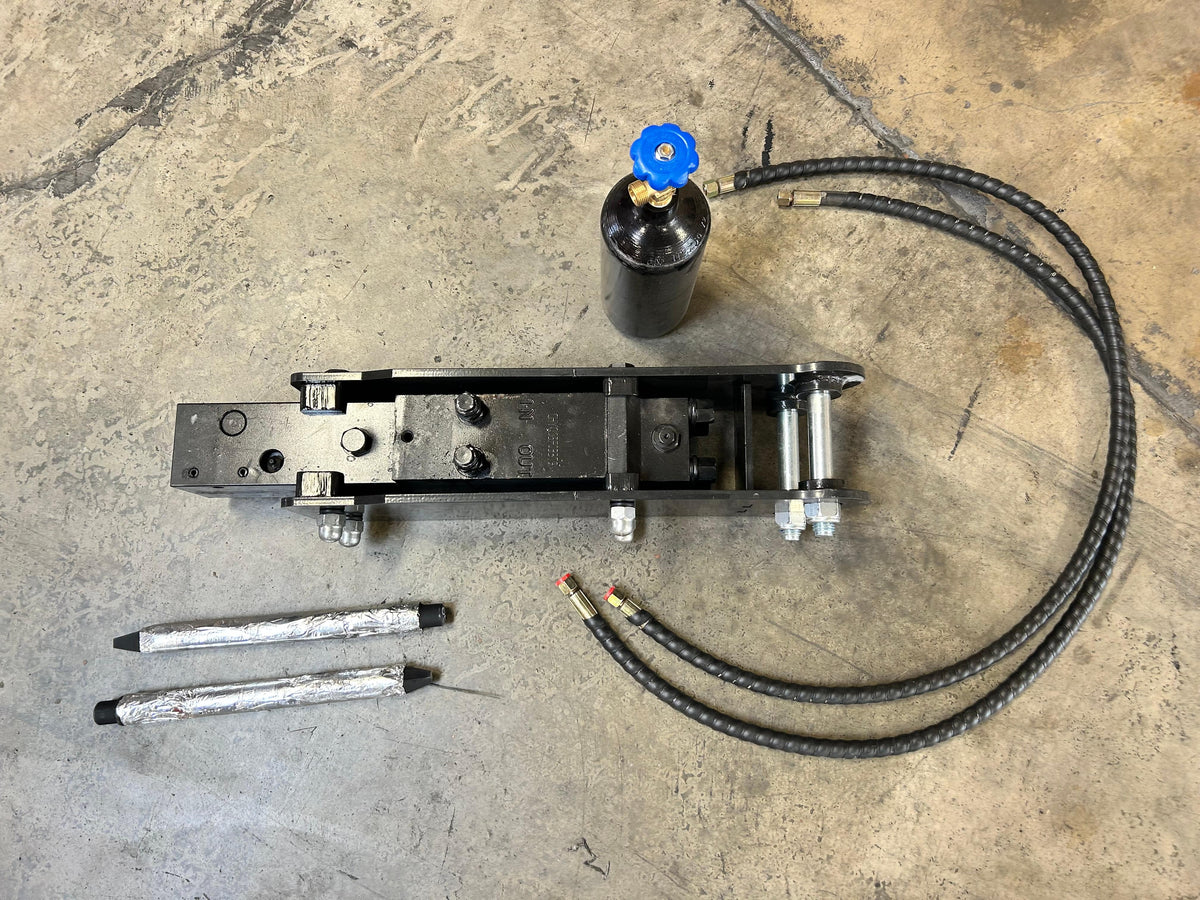

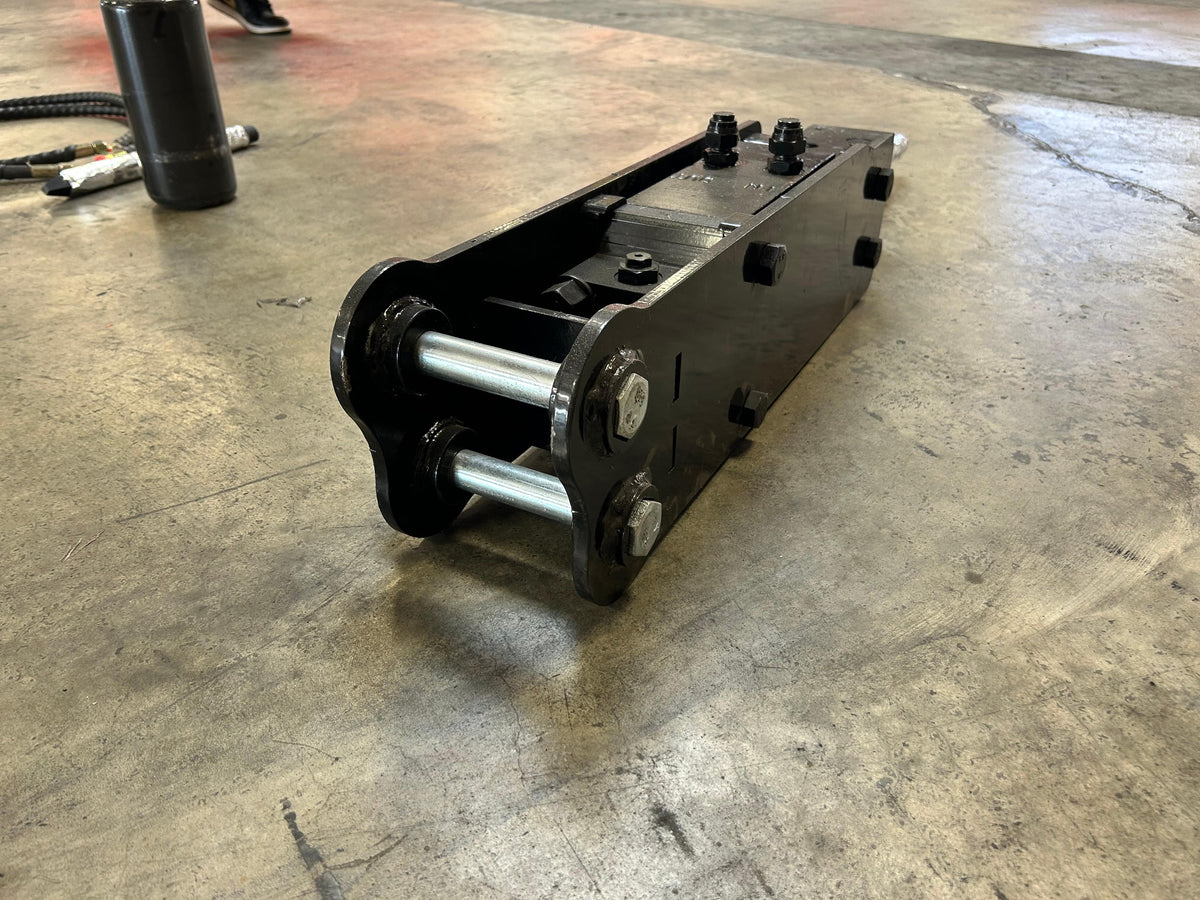

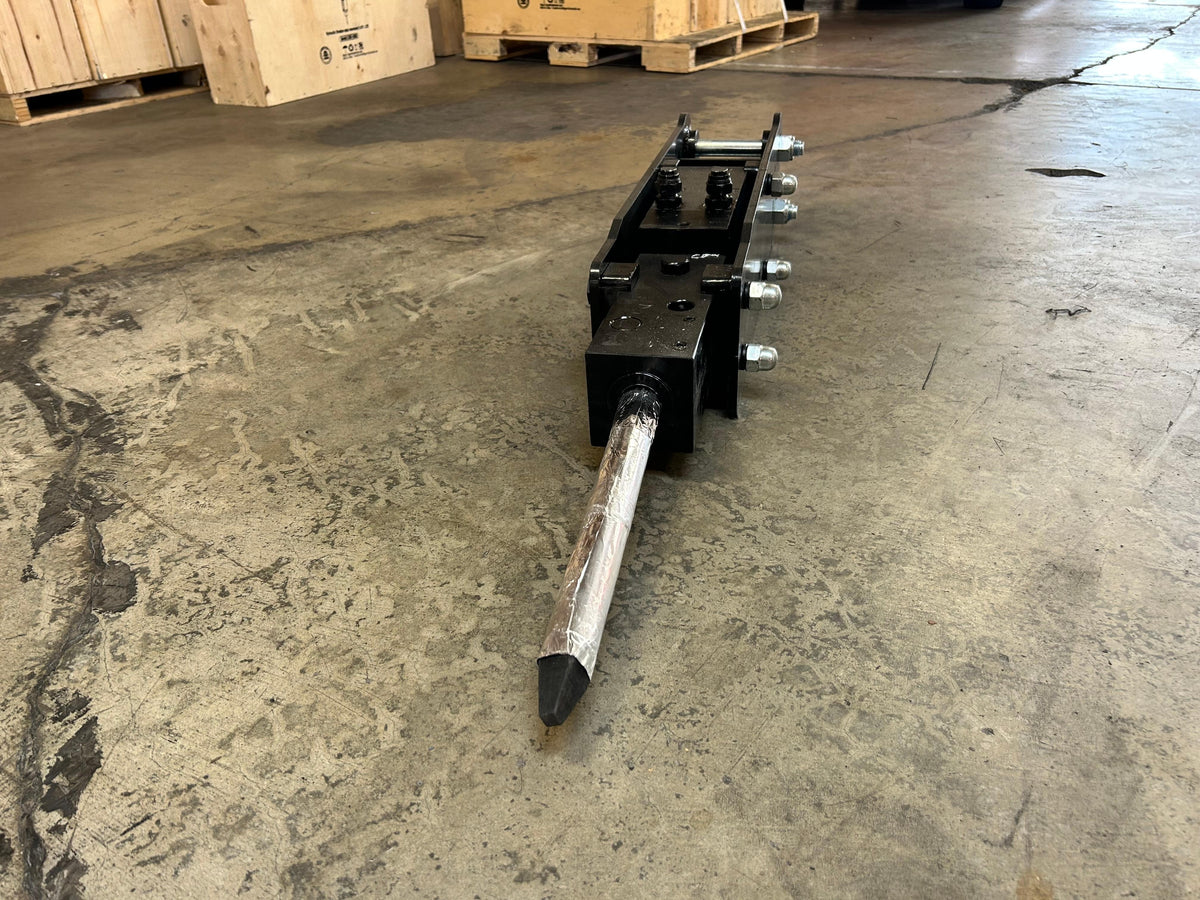

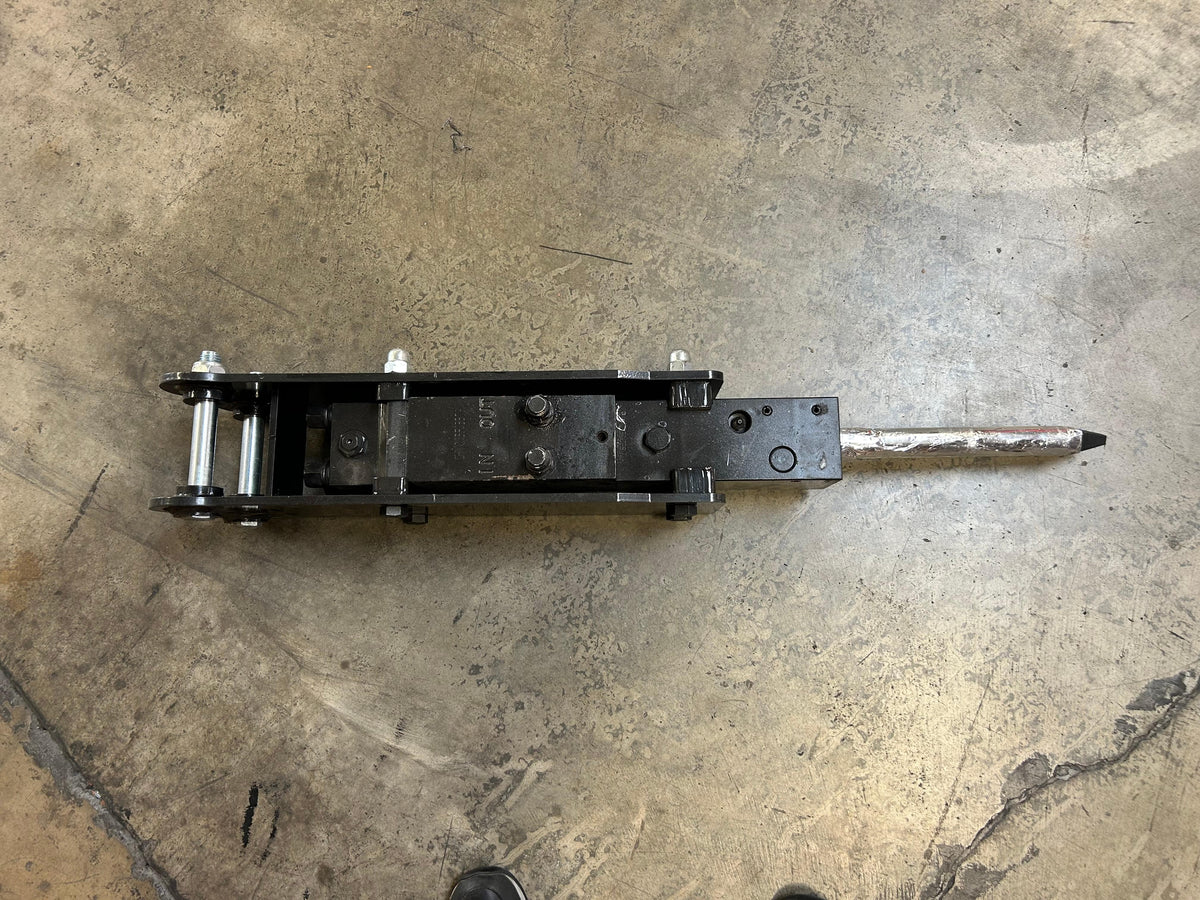

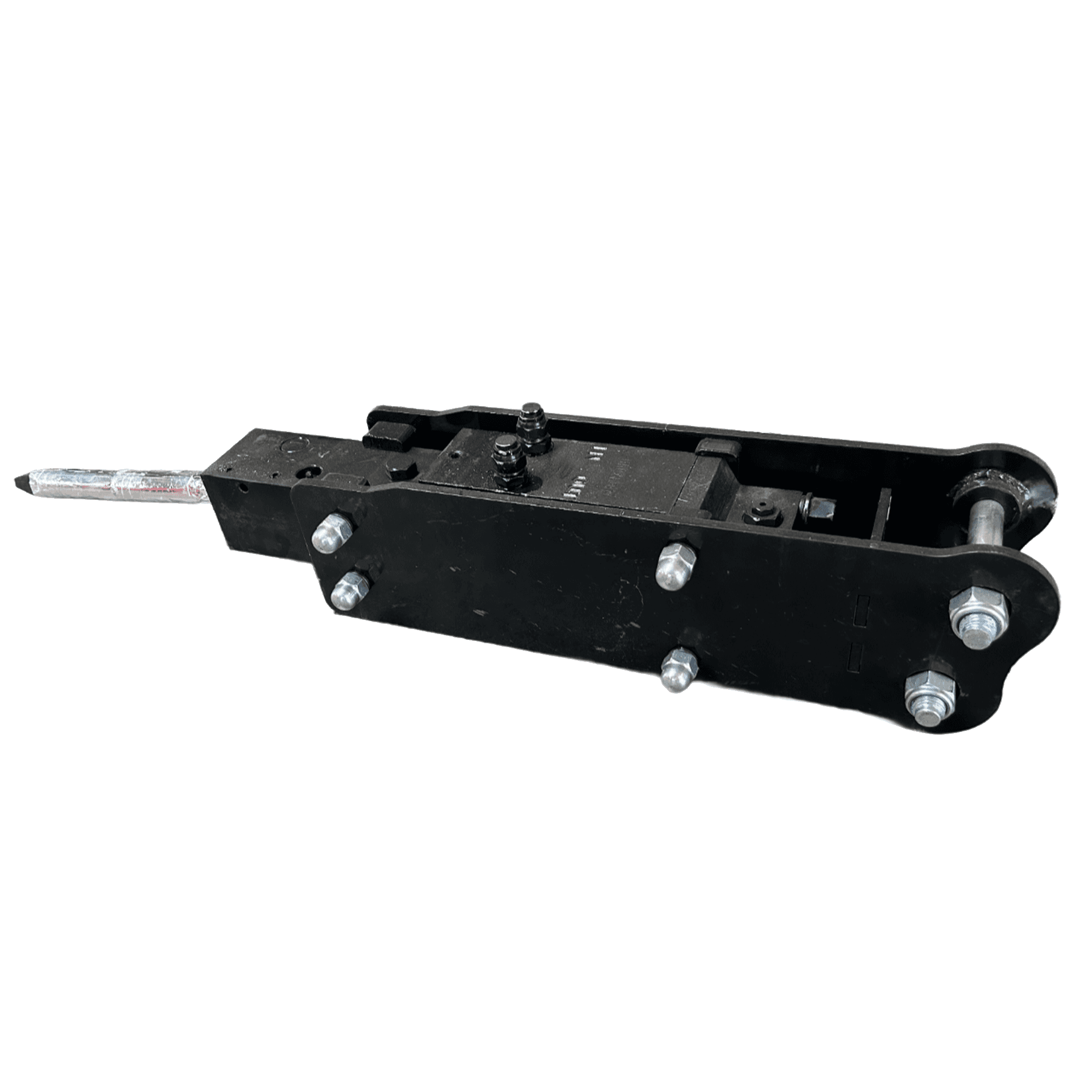

Hydraulic Breaker for Mini Excavator | 12EX-HMR35ZJPSCB

The AGT 12EX-HMR35ZJPSCB hydraulic breaker is a compact, high-impact demolition attachment built for 1–2 ton mini excavators. Engineered for power, precision, and durability, it delivers strong striking force for breaking concrete, asphalt, stone, and hard ground. Its efficient hydraulic design ensures consistent performance while minimizing recoil and vibration, making it ideal for light- to medium-duty excavation and demolition work.

Key Features:

• Hydraulic breaker attachment for 1–2 ton mini excavators
• High-impact energy for concrete, asphalt, and rock demolition
• Robust steel housing and hardened chisel for long service life
• Compact design for confined or precision job sites

Technical Data:

• Weight: 172.3 lb

• Chisel Length: 15 in
• Impact Force: 28 kgf·m

• Hydraulic Pressure: 1,160–1,740 psi

• Flow Rate: 4–6.6 GPM

• Dimensions: 31.9 x 16.6 x 9.5 in (excluding rod)

12EX- Attachment:

• 25mm (0.98 in) Pinholes
• 95mm (3.74 in) Ear-to-Ear
• 90mm (3.54 in) between Center-to-Center of pinholes
