Atlas Platinum PVL-10 4535.9kg 2-Post Lift
$889.90
The Atlas Platinum PVL-10 is a commercial-grade above-ground two-post lift engineered for high reliability, strength, and versatility in professional auto shops and home garages. Featuring an innovative Double S column design, this lift delivers exceptional structural integrity, stability, and enhanced lifting performance for cars, SUVs, and light-duty trucks.
Powered by a premium ALLY Hydraulic AL2850 power unit, it ensures consistent torque and superior heat management during heavy operation. With adjustable overhead height configurations, symmetric or asymmetric arm setups, and padded vehicle protection guards, this ALI-certified lift offers secure, adaptable operation for diverse service demands.
Key Features
| Brand | Atlas |
| Model | PVL-10 |
| Product Type | Two-Post Car Lift |
| Lifting Capacity | 4535.9 kg |
| Certification | ALI Certified |
| Column Design | Double S |
| Column Configuration | Symmetric or Asymmetric |
| Arm Configuration | Three-Stage Front Arms & Two-Stage Rear Arms |

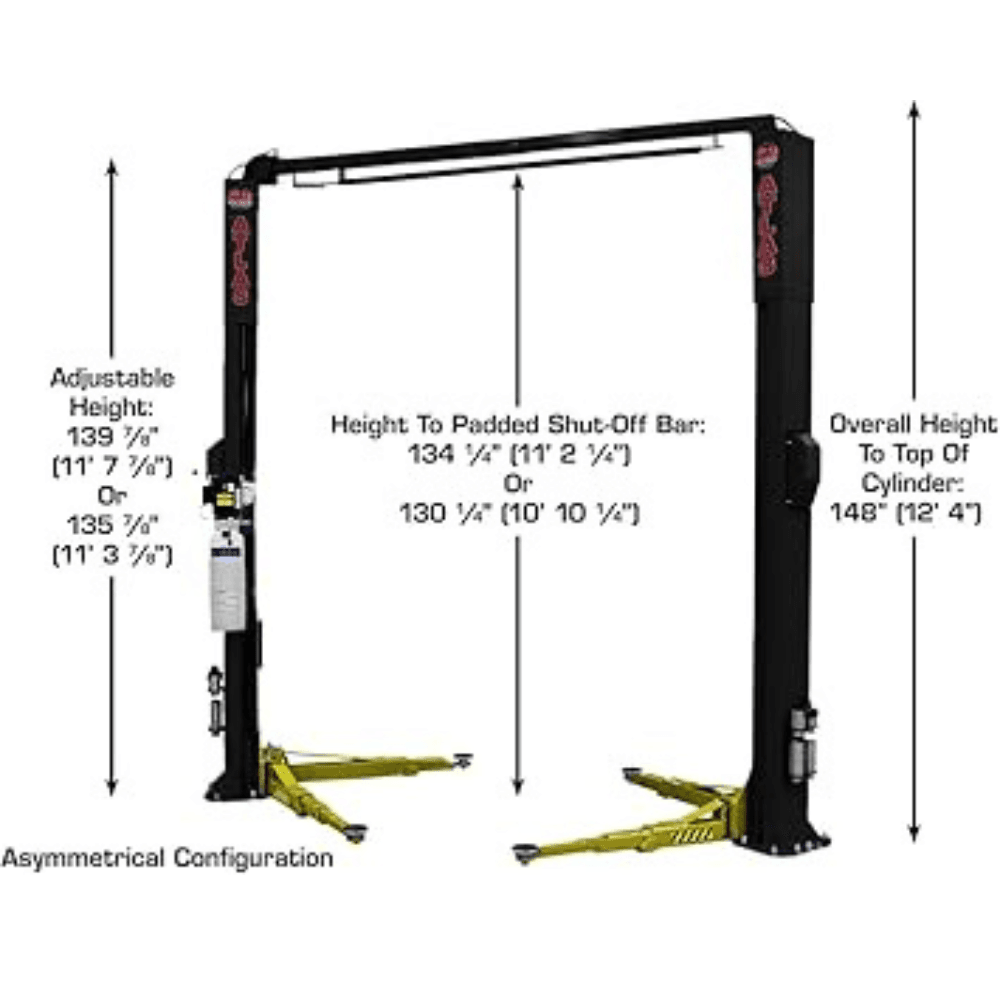

| Overall Height | 3.4 m or 3.6 m |
| Power Unit | ALLY Hydraulic AL2850 |
| Lock Release | Single Point |
| Finish | Powder Coated |
| Shipping Weight | 952.5 kg |
Highlights

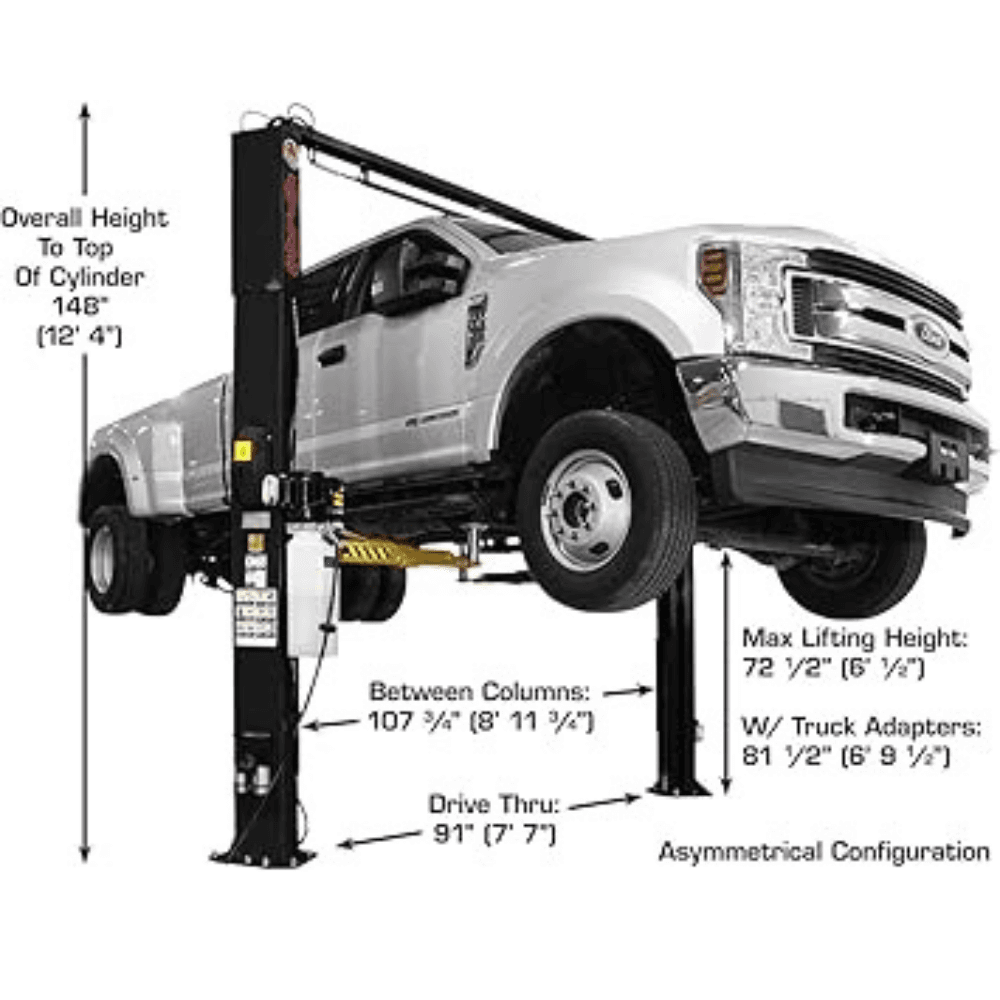

- 10,000 lb. Lifting Capacity – Ideal for cars, SUVs, and light-duty trucks.
- ALI Certified – Meets strict safety and performance standards.

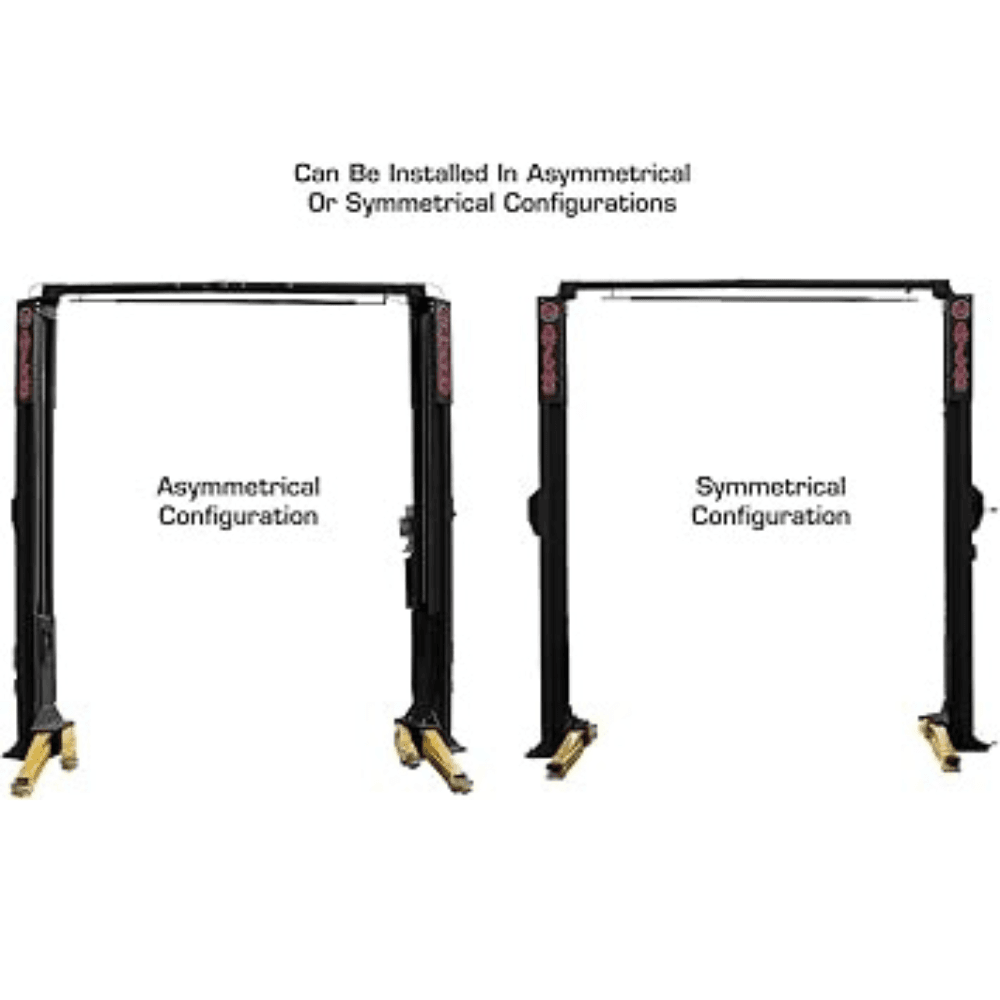

- Symmetric or Asymmetric Columns – Provides flexibility in positioning vehicles.
- Three-Stage Front Arms & Two-Stage Rear Arms – Allows for greater adaptability when lifting various vehicle sizes.
- Double S Column Design – Increases structural strength for improved durability and stability.

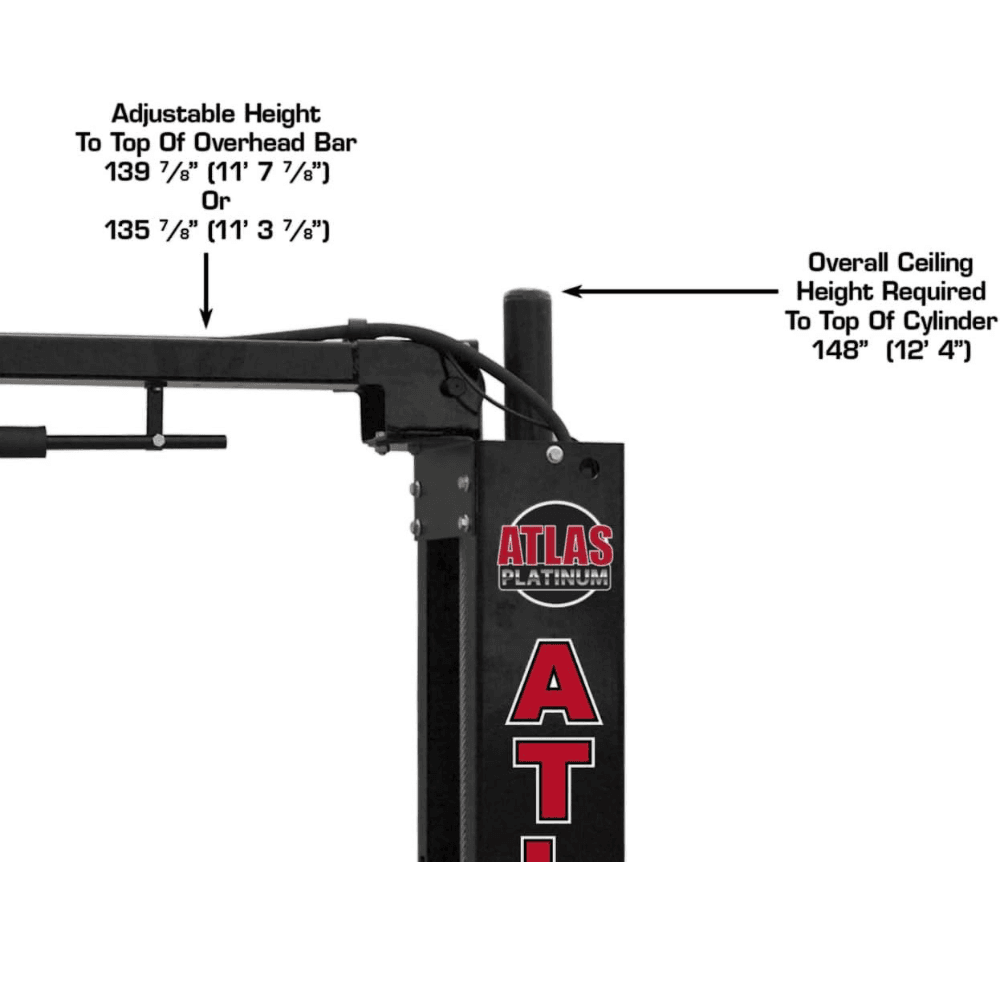

- Adjustable Height – Choose between 11′ 7 7/8″ or 11′ 3 7/8″ to fit different garage spaces.
- Padded Carriages & Rubber Column Guards – Protects vehicles from accidental contact.
- Professional-Grade Arm Lock Restraint System – Ensures secure and safe lifting.
- Higher Quality Powder Coating – Enhances durability and corrosion resistance.
- Single Point Lock Release – Simplifies operation and enhances safety.
- Premium ALLY Hydraulic AL2850 Power Unit – Certified by MET Laboratories Inc. for electrical compliance in the US and Canada.
- Extra heavy-duty armatures and enhanced motor windings for superior heat management and consistent torque.
- Two-year limited manufacturer's warranty.
- Shipping Weight: 2,100 lbs. – Heavy-duty steel construction for long-lasting performance.
Compatibility
Compatible with standard passenger cars, SUVs, and light-duty trucks weighing up to 4,535.9 kg. Includes truck adapter sets to accommodate taller frames and diverse undercarriage profiles.
What's included
- Mounting Hardware – Ensures secure installation.
- Truck Adapter Set – Expands compatibility for lifting taller vehicles.
- Double Screw-Up Adapter Kit – Provides additional lifting versatility.
