APlusLift HW-10KOH-A Two Post Car Lift 3.64m x 3.41m
$890.00
The APlusLift HW-10KOH-A is a heavy-duty two-post overhead car lift engineered for professional shops and home garages requiring reliable 4535.9 kg lifting capacity. Built with a robust double-S column design and high-grade Q355 steel carriages, this clear-floor auto hoist delivers superior rigidity and long-lasting strength for full vehicle underbody access.
Featuring a versatile combination arm assembly with adjustable screw pads and truck adapters, this lift accommodates standard passenger cars and light-duty trucks with ease. A powerful 220V 3HP motor, dual hydraulic chain-drive cylinders, and automatic safety locks ensure smooth, dependable lifting up to a maximum height of 205.7 cm.
Key Features
| Brand | APlusLift |
| Model | HW-10KOH-A |
| Product Type | Two Post Overhead Car Lift |
| Lifting Capacity | 4535.9 kg |
| Overall Height | 363.7 cm |
| Overall Width | 341.2 cm |
| Maximum Lift Height (with Adapters) | 205.7 cm |
| Maximum Lift Height (without Adapters) | 190.5 cm |
| Drive-Through Width | 254 cm |
| Column to Column Width | 276.9 cm |
| Pad Minimum Height | 10.2 cm |
| Rise Time | 50 seconds |
| Motor | 220V Single Phase 3HP 10A |
| Lock Release | Double Point Release |
| Driving Mode | Dual hydraulic cylinders, chain drive |
| Shipping Weight | 666.8 kg |
Highlights
- 3-year manufacturer's warranty

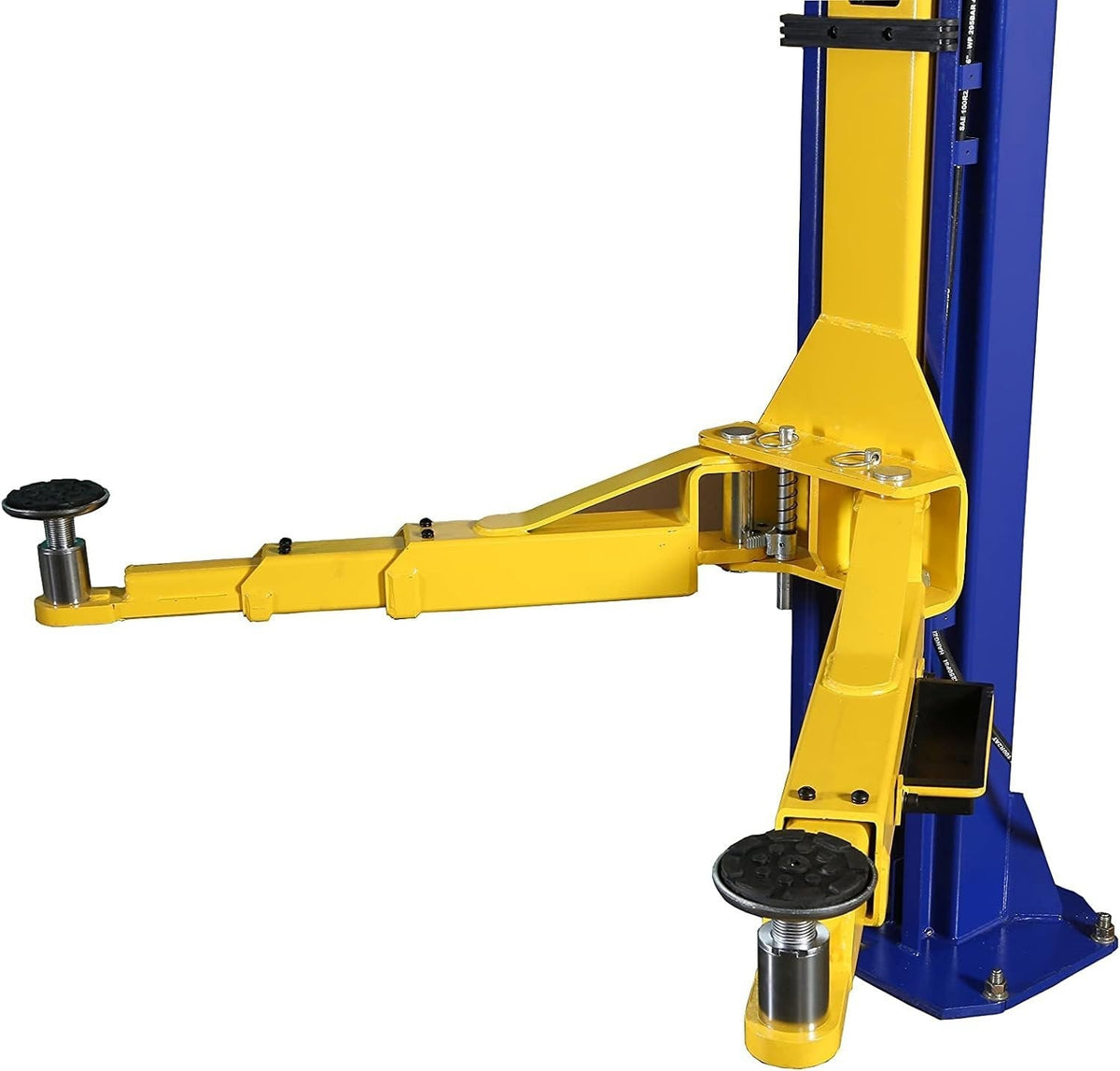

- Combo (symmetrical and asymmetrical) arm assembly with adjustable screw pads
- CE certified lift structure and hydraulic system – tested for 115% dynamic load capacity and 150% static load capacity
- Includes one set of 4" tall truck adapters; 6'9" maximum lift height with truck adapters
- Robot-welded structure with durable powder-coated finish
Materials & care
Constructed with robot-welded heavy-duty steel and Q355 carriage components finished in a durable powder coat. Maintain smooth operation by periodically inspecting cable synchronization, checking hydraulic fluid levels (AW32 or AW46), and cleaning moving contact surfaces.
What's included
- 1 x APlusLift HW-10KOH-A Overhead Two Post Car Lift
- 4 x Adjustable Screw Pads
- 4 x 10.2 cm Tall Truck Adapters
- 10 x Anchor Bolts
- 10 x Shims
- 2 x Tool Trays
- 2 x Toe Guards
